Solid State Amplifiers - Pulsed
Find the Right Solid State Pulsed Amplifier
Solid-state pulsed amplifiers from AR are a practical alternative to Traveling Wave Tube Amplifiers (TWTAs). They are used for automotive and military EMC radiated immunity testing, and for radar and communication applications. Frequency ranges cover 1-2 GHz and up to 8-12 GHz, with peak power from 1.5 kW to 600 kW, so you can match an amplifier to the standard you are testing against. They are rugged, tolerate any source and load mismatch without damage or oscillation, and have a high mean time to failure. Each has a touchscreen control panel, GPIB interface, TTL gating, fault monitoring and forced air cooling.
Not sure which model suits your application, or need something built around it? Contact us and our team will help you choose the right amplifier or discuss a custom solution.

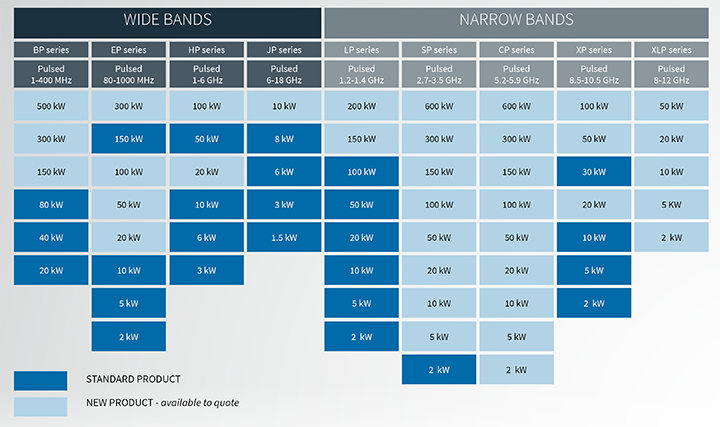

| Series | Frequency | Power | Details |
|---|---|---|---|
| BP series | 1 – 400 MHz | 20 – 500 kW | View specification → |
| EP series | 80 – 1000 MHz | 2 – 300 kW | View specification → |
| HP series | 1 – 6 GHz | 3 – 100 kW | View specification → |
| JP series | 6 – 18 GHz | 1.5 – 10 kW | View specification → |
| LP series | 1.2 – 1.4 GHz | 2 – 200 kW | View specification → |
| SP series | 2.7 – 3.5 GHz | 2 – 600 kW | View specification → |
| CP series | 5.2 – 5.9 GHz | 3 – 600 kW | View specification → |
| XP series | 8.5 – 10.5 GHz | 4 – 100 kW | View specification → |
| XLP series | 8 – 12 GHz | 5 – 50 kW | View specification → |
